Marine Winches

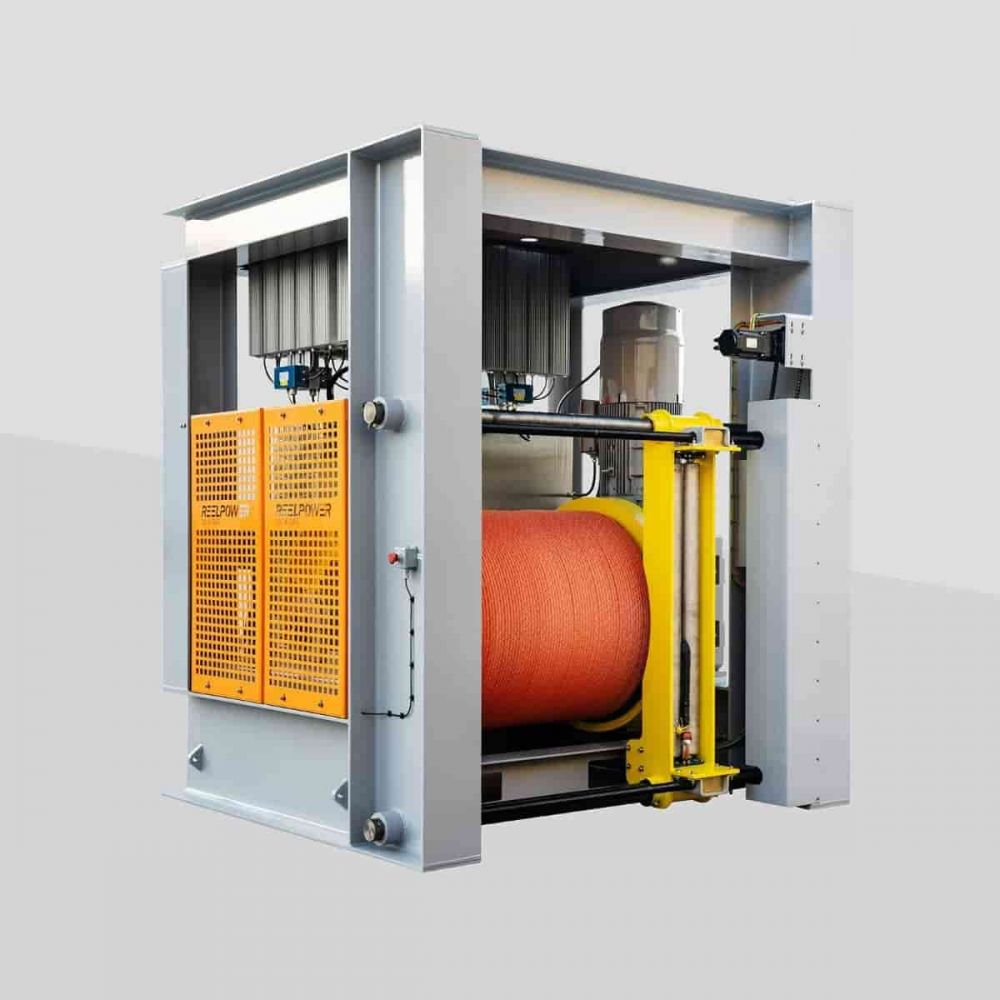

Reel Power has over 48 years of designing and building specialty winch and winding equipment. Marine winches are available with variable frequency or hydraulic drive systems for over 100,000 lbs of pull. Please share with us your exact requirements and a winch can be offered to best suit your application.
Reel Power has over 48 years of designing and building specialty winch and winding equipment. Marine winches are available with variable frequency or hydraulic drive systems for over 100,000 lbs of pull. Please share with us your exact requirements and a winch can be offered to best suit your application.
- Variable Frequency electric offers the optimum speed and tension control (Hydraulic drives available)
- Variable speed electric drives with encoder feedback available with Washdown (IP56/Nema 4X) or Zone 2 ratings
- Failsafe motor brakes to hold the load upon Joystick to center or E-stop activation
- Variable speed and tension display with operator feedback of set points and operating conditions
- Direct drive through reducer offers simplest mechanical transmission of torque
- Large Color Touchscreen Operator and PLC control offers convenient, easy to understand operator control and greater flexibility
- Servo driven Levelwind offers the greatest quality levelwind and flexibility (diamond screw available). Traverse (levelwind) features include:
- Adjustable pitch that may be changed on the fly to adjust to on changing conditions
- Adjustable reversal set points and home positions
- Adjustable dwell time, accel and decel into/out of the corners
- Traverse manual overrides changeable on the fly
- Joystick speed and directional control, START/STOP pushbutton with indicator lights and multiple, strategically positioned large red E-SOP pushbuttons
- Available wire rope or synthetic rope up to 2 1/2” diameter; factory tension winding service
- Lebus groove depending on the application
- Certified lift eyes and forklift pockets for easier handling
- Deck tie down provisions
- Slip ring options
- Lifting accessories option
- Complete machine guarding option
- ABS or DNV certifications
- Oceanographic Winches
- Towing Winches
- Research Winches
- Specialized Winches
- Traction Winches
- Array Winches
- Renewable Winches
- Dredging Winches
- Bow Winches Ocean & Seabed Survey Winches
- Specialty Mooring Winches
- Aerostat Winches
- Seismic winches
- Geotechnical Winches(seabed sampling)
- ROV Winches
- Environmental Winches
