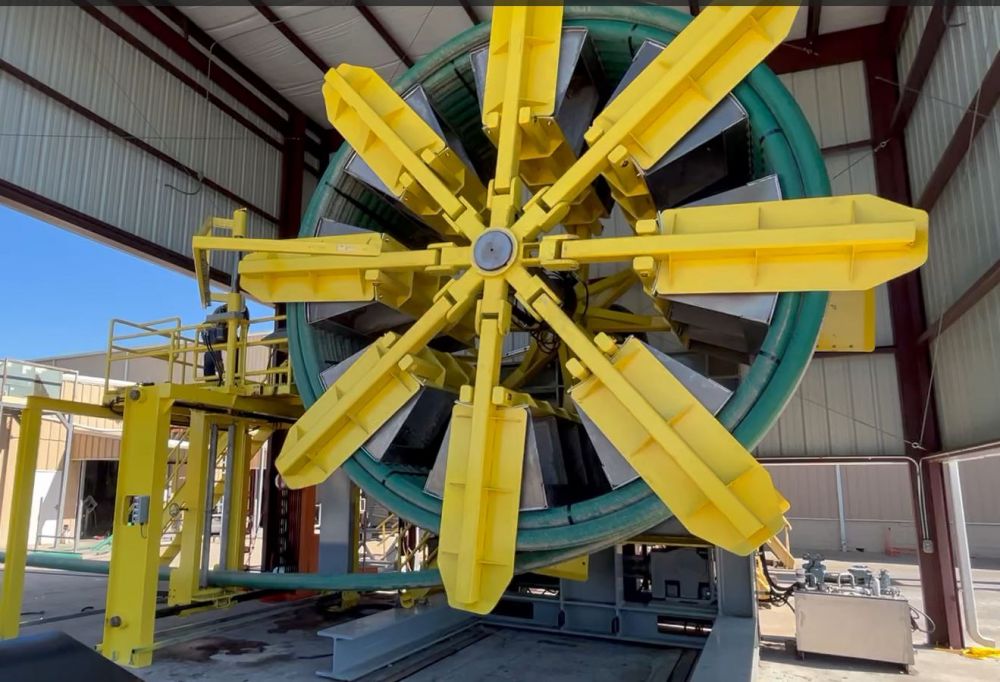

Large Pipe & Flowline Coilers

» Wide range of coil head adjustment
» Safe and ergonomic operation
» Automatic pipe layering
» Automatic stop at pipe end

OPTIONS
» Semi-Automatic Strapping/Banding
» Fully Automatic Strapping/Banding
» Integrated Coil Unloading&Staging Arm
» Dancers/Accumulators fortension control
» Traversing frame coiler forlevelwind control
» Pipe end quick release and start-up assist



Reel Power Marine & Energy builds pipe and flowline coilers for over 10” diameter material with coil weight of over 30,000 lbs. Both on and offline processing available. Both semi-automatic and fully automatic machines are available.

DETAILS:

Automatic Coilers:

Automatic coilers remove most of the operator intervention and provide optimum coiling efficiency. These coilers wind the product as it exits the extrusion line automatically following extrusion speed using dancer arm or torque control, and they automatically layer the pipe into the desired coil shape. Attachment of the product to the reel may be automatic or with some operator intervention. Packaging is usually by fully automatic strapper that applies the band at multiple layers of the coil.  Offloading the finished coil may be automatic with a powered arm or operator-controlled unloading.  Automatic pipe layering and auto stop at pipe end are standard across the range.

Low Ovality Technology mounted to the levelwind reduces overall coil size for a given length by reducing coil inside diameter without compromising the ovality of the pipe.

Semi-automatic Coilers:

Semiautomatic coilers are a low cost alternative to fully automatic equipment. These coilers wind the product as it emerges from the extrusion line automatically following extrusion speed using dancer arm or torque control, and they automatically layer the pipe into the desired coil shape. Attachment of the product to the reel is manual as is cutting at the end of extrusion. Packaging is applied by the operator who also is required to unload the finished coil. Automatic pipe layering and auto stop at pipe end are standard across the range.

More Information
Product Brochure View FileLarge Pipe & Flowline Coilers
Model/Option

Available Options:


  • Powered adjustable coil ID
  • Automatic pipe layering
  • Automatic stop at pipe end
  • Powered coil unloading arm
  • Semi-Automatic banding
  • Fully Automatic banding
  • Dancers/Accumulators for speed and tension control
  • Low Ovality Technology
  • 4” – 10” inside pipe diameter
  • 100” coil widths
  • 220” coil outer diameter
  • 250 FPM line speeds (On or Offline)
  • Low Ovality Technology Available
  • Automatic coil strapping available
  • Powered coil offload arms available
  • HDPE Pipe
  • Composite Pipe
  • Drain Line (Corrugated)
  • Flow Lines
  • Reinforced Thermoplastic Pipe
  • Umbilical cables
  • Braided rubber hoses
