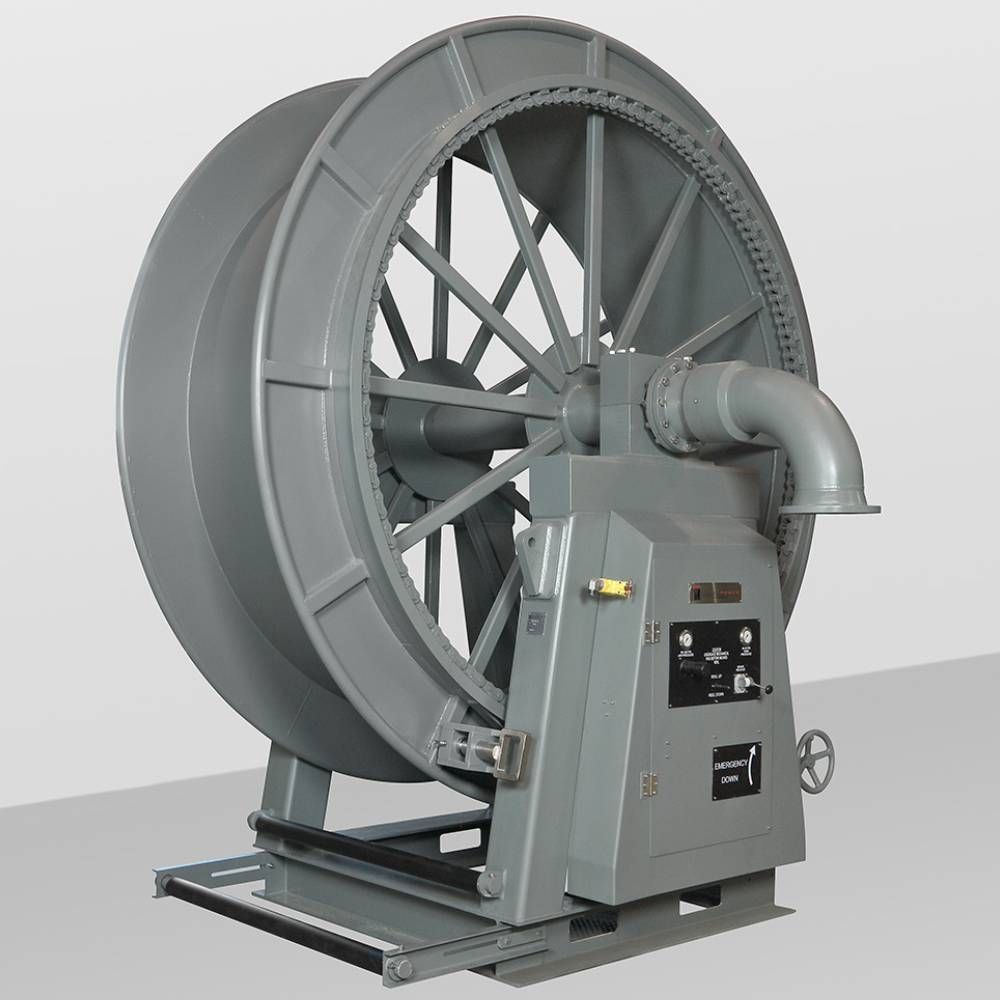

Jack-up Pre-Load Pumping System

Speed Up Rig Moves & Simplify Preloading with Our Proven Hose Reel Pumping Systems. Hose reels provide an effective and safe means of storing, lowering and retrieving a hose at the end of which is ESP (Electric Submersible Pump) for your jack-up’s Preload Operation.

Details

Reel Power Marine & Energy, Inc. (formerly Tulsa Power) is a global leader in offshore hose reel systems, with a proven track record of over 175 units delivered worldwide.

Our Preload Hose Reel Pumping System is purpose-built for jack-up drilling rigs, delivering speed, safety, and simplicity:

Faster Preloading Times – A high-capacity 7,000 GPM pump cuts hours off preload operations, accelerating rig moves and reducing downtime.
Safe & Efficient Deployment – Integrated hose reel system provides the safest and most convenient solution for pump deployment and retrieval—no manual handling or tying up crane required.

Typical preload hose reels handle a 10” (152 mm ) x 65 ft (20 m) hose and are available with pneumatic or electric actuation.

In addition, Reel Power offers Raw Water Hose Reel Systems designed for both jackup drilling rigs and wind turbine installation vessels (WTIVs)—engineered for reliable, secure offshore water transfer.

Whether you're operating in oil & gas or offshore wind, our hose reel systems are built to perform in the toughest conditions.

More Information

More Information
Product Brochure	Jack-up Pre-Load Pumping System
Model/Option	The reel accommodates an OSD (oil suction & discharge) hose. At the end of the hose, a suitable submersible pump is attached. The entire weight of the pump, motor, and accessories are supported by the hose alone, making it the most maintenance-friendly, hassle-free compact lightweight system available in the marketplace. High Hose Capacities: 10” & 12” hose capacities available. Various hose lengths available Hose Options: Standard and fire-resistant hoses Reel Drive Options: Pneumatic and Electric are available Pump Drive Options: Variable Frequency and Soft Start Single Speed are available Remote Control Panel Option: Remote control panels are available for ease of operation from the deck, primarily used with the above platform options Chute: To maintain pump/hose position in high winds, waves and current Platforms Options: Single and double (parallel or tandem) reel platforms are available to raise the reel off the deck and provide additional storage space under the platform. Platforms are complete with safety railing and access latter Lifting Accessories Option: Certified single point lift spreader bar, lifting slings & shackles 3rd Party Certification: ABS, DNV or NK certifications available

Specification

Flow Rate: Up to 7000 GPM (1590 m3/hr)
Hose Diameter: 10 in (254 mm) & 12 in (305 mm)
Hose Length: up to 100 ft (30.5 m)
Drive: Pneumatic or Electric VFD
Rotary Union: A 90 deg. live swivel connection eliminates the need to decouple during raising or lowering the pump.
Offshore Duty: Heavy duty, offshore, seal welded skid, oilfield paint system and non-corroding components provided.
Manual Lock Pin: Manually engaged locking pin positively prevents inadvertent turning of the reel.
Hose Guides: Removable rollers maintain position of hose and pump below the reel.
Documentation: Complete documentation package provided. Including Installation, Operation & Maintenance Manual

Common Uses

Jack-up Drilling Rig Pre-Load Operation

Value Proposition

By adding One (1) Pre-Load pump system the rig can save between 7 to 17 hours for each preloading operation, reducing rig non-productive time.

Raise and lower pumps without taking up crane time.

Pump may be raised and lowered by one operator.

If you are a jack-up rig or vessel owner or builder we'd like to share the many benefits of these systems and Reel Power’s extensive experience and capabilities with hose reel pumping systems.
