Umbilical Reels - Overview

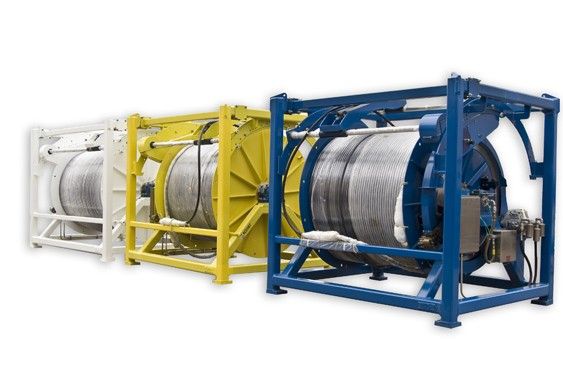

Reel Power ME Umbilical Reels are capable of handling up to 13,500 feet of umbilical or hydraulic hose. There are several patented features available on all our umbilical reels that allow safe and reliable deployment of various hose types.
Radoil Umbilical Reels are capable of handling up to 13,500 feet of umbilical or hydraulic hose. There are several patented features available on all our umbilical reels that allow safe and reliable deployment of various hose types.
Reel Power ME Umbilical Reel Unique Features:
Reel Power ME's Smart ReelConstant Tension (CT-2) feature automatically adjusts the tension of the reel as the umbilical is deployed allowing the reel to function on its own. This feature also monitors the speed of the reel and detects if the reel is moving faster than the riser. When this speed differential occurs the reel willautomatically set the clutches and brakes stopping the umbilical in the event of over-payout or runaway storm loop.
Our Power Brake Assist (PBA) system reduces the brake response time and allows better control of the brakes at lower supply air pressures.
The “Slip Clutch” system allows the spool to turn, under a pre-set drag, even if the brake is locked, protecting the hose from damage in the event of unexpected riser movement.
Our patented “Banana Curve” allows the level-wind fleet angle to be adjusted within a 110° range allowing hose deployment from the vertical position to just below the horizontal position. The adjustable level-wind angle features allows the user additional flexibility when locating the reels and umbilical sheaves on a vessel.
The “Local Controls” allowRadoil reels to be operated from controls mounted on the reels or from a remote control panel. Our control panels can be configured to operate as many reels from one station as the customer desires.
Reel Power ME's Umbilical Reels around the world
Reel Power ME has its Umbilical Reels onapproximately125 Deepwater Rigs around the world. We currently supply Umbilical Reels for about 70% of the new-build Deepwater Rig market.Radoil reels are built and tested to be very sturdy and durable. Radoil is the reel of choice for deepwater operators.
Umbilical Reels Quality Service
Our experienced service Department personnel are capable of repairing, maintaining or upgrading our umbilical reels anywhere in the world.Spare parts kits are available so our reels can be readily maintained in the field.
| Product Brochure |  |
|---|
- Smart Reel Technology - Constant Tension Reels (CT-2)
- Adjustable Levelwind Fleet Angle
- Power Brake Assist (PBA)
- Handle up to 13,500 ft. of umbilical/hose
- Gear drive
- Electric, Fiber Optic and Hydraulic swivels
- Explosion proof controls
- Deepwater BOP Systems – MUX & Hot Line
- Intervention Workover System (IWOCS)
- Hydraulic Multifunction Umbilical (Pod Hose)
- Discrete Reels
- Duel Gradient Reels
